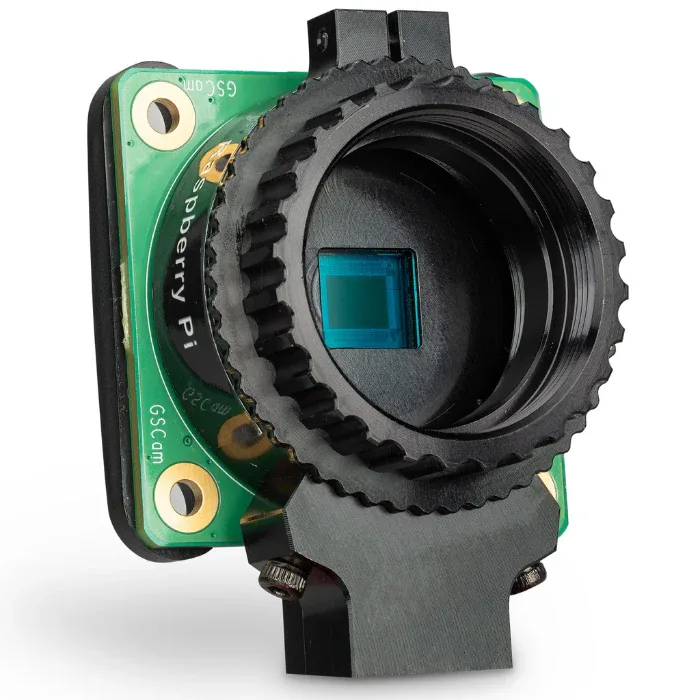

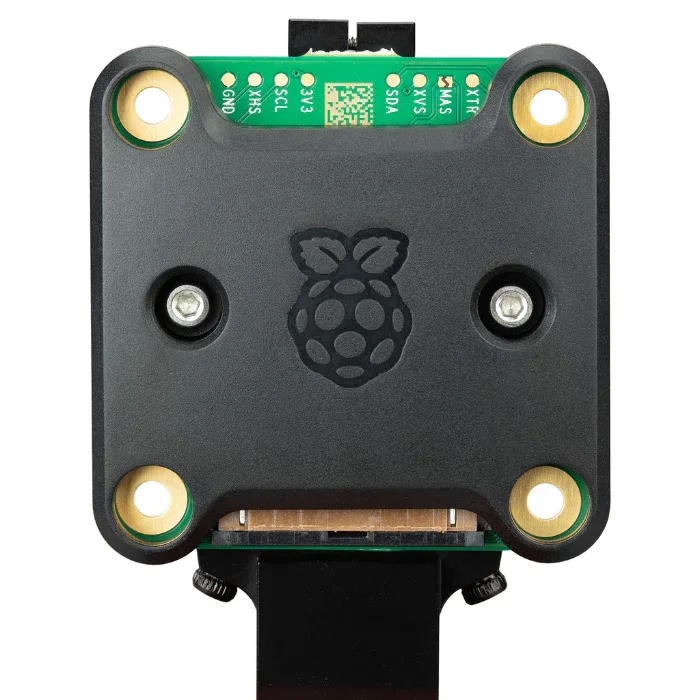

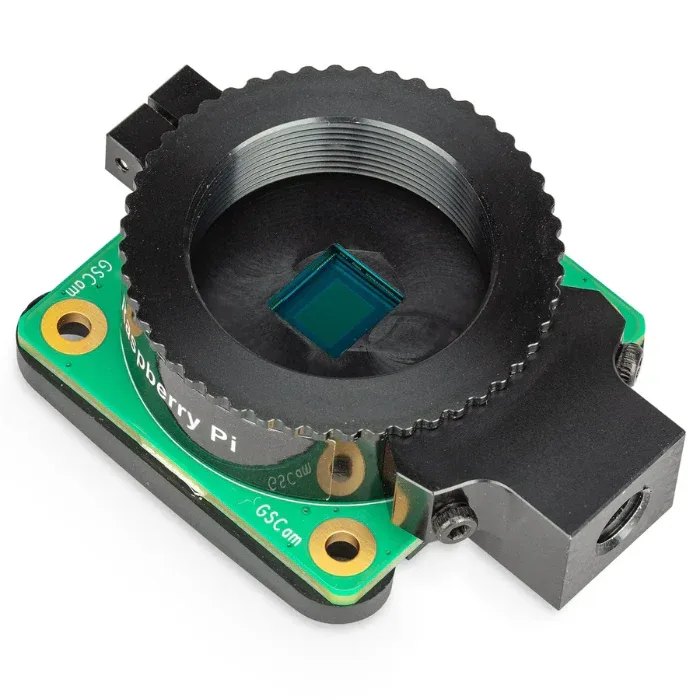

Raspberry Pi Global Shutter Camera

Compact size: 38 × 38 × 19.8mm (41g with adapter). Sony IMX296LQR-C sensor, 1.58MP resolution. 6.3mm sensor diagonal, 3.45μm × 3.45μm pixel size. RAW10 output for high-quality images. Adjustable back focus (12.5–22.4mm). Compatible with CS/C-Mount lenses (adapter included). Integrated IR cut filter. Includes 150mm ribbon cable, mount adapter, and screwdriver. 1/4”-20 tripod mount. Compliant with FCC, EMC, and RoHS. Production lasts until at least January 2032. Raspberry Pi Global Shutter Camera The Raspberry Pi Global Shutter Camera is a 1.6MP camera designed for fast motion capture without distortion. Ideal for high-speed photography and machine vision, it features a Sony IMX296 sensor with high light sensitivity and short exposure times (as low as 30?s). It uses a C/CS-mount lens assembly, compatible with a wide range of lenses. With a lower resolution optimized for machine vision, it enables real-time image processing. The camera includes a C- to CS-mount adapter, screwdriver, ribbon cable, and protective back cover. Compatible with any Raspberry Pi with a CSI connector. Key Features 1.6MP camera with global shutter for fast motion capture. High light sensitivity with 3.45?m × 3.45?m pixels. Short exposure times (down to 30?s). Sony IMX296 sensor for high-speed photography. Compatible with C/CS-mount lenses. Includes adapter, screwdriver, ribbon cable, and back cover. Works with Raspberry Pi computers with a CSI connector.
